Coverage Info

The coverage_info flag enables automatic computation of coverage information for a verification run. In particular, using this flag can help you answer questions such as:

  • Are all solidity functions from the input involved in proving my rules?

  • Are all solidity commands from the input involved in proving my rules?

  • Supposing an assert in my rule is not reachable, what is the reason for the unreachability?

  • Do I really need all hooks that are defined in my .spec file(s)?

  • Do I really need all require statements in my rule?

  • Do I really need to initialize a CVL variable in my rule?

  • Do I really need all of the preserved blocks in my CVL invariant?

To answer the above questions, the Certora Prover identifies a minimal subset of the commands in the input .sol and .spec files that are relevant for proving the CVL properties. If some of the input .sol commands are not relevant for deriving the proof, it might indicate that the specification does not cover all behavior implemented in the smart contract. If some of the input .spec commands are irrelevant (typically unnecessary require statements or variable initializations), it indicates that the CVL rules/invariants can be made stronger.

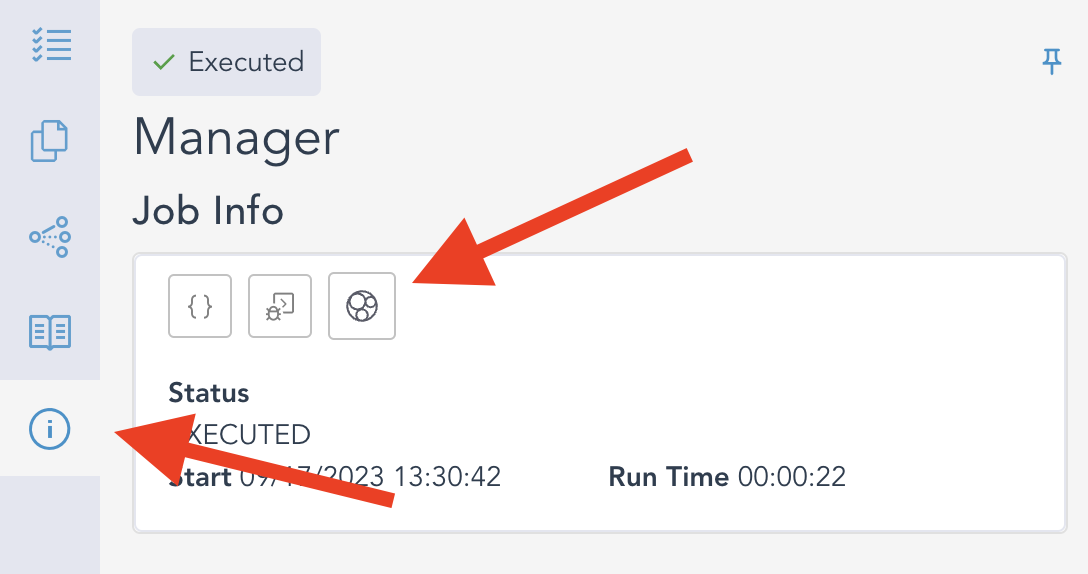

You can access the coverage visualization via Job Info -> Coverage Info page buttons:

Coverage Info Button

Examples

Tautology example

Consider the following CVL rule called tautology:

rule tautology(uint256 fundId, method f) {
	env e;
	address manager =  getCurrentManager(fundId);
	address other;
	require other != manager && other != e.msg.sender;
	calldataarg args;
	f(e,args);
	address newManager = getCurrentManager(fundId);
	assert newManager!= other || newManager != manager;
}

Notice that we required that other != manager and hence the assert is necessarily true (see the concept of a tautology). The executions of getCurrentManager(...) and f(...) are completely irrelevant.

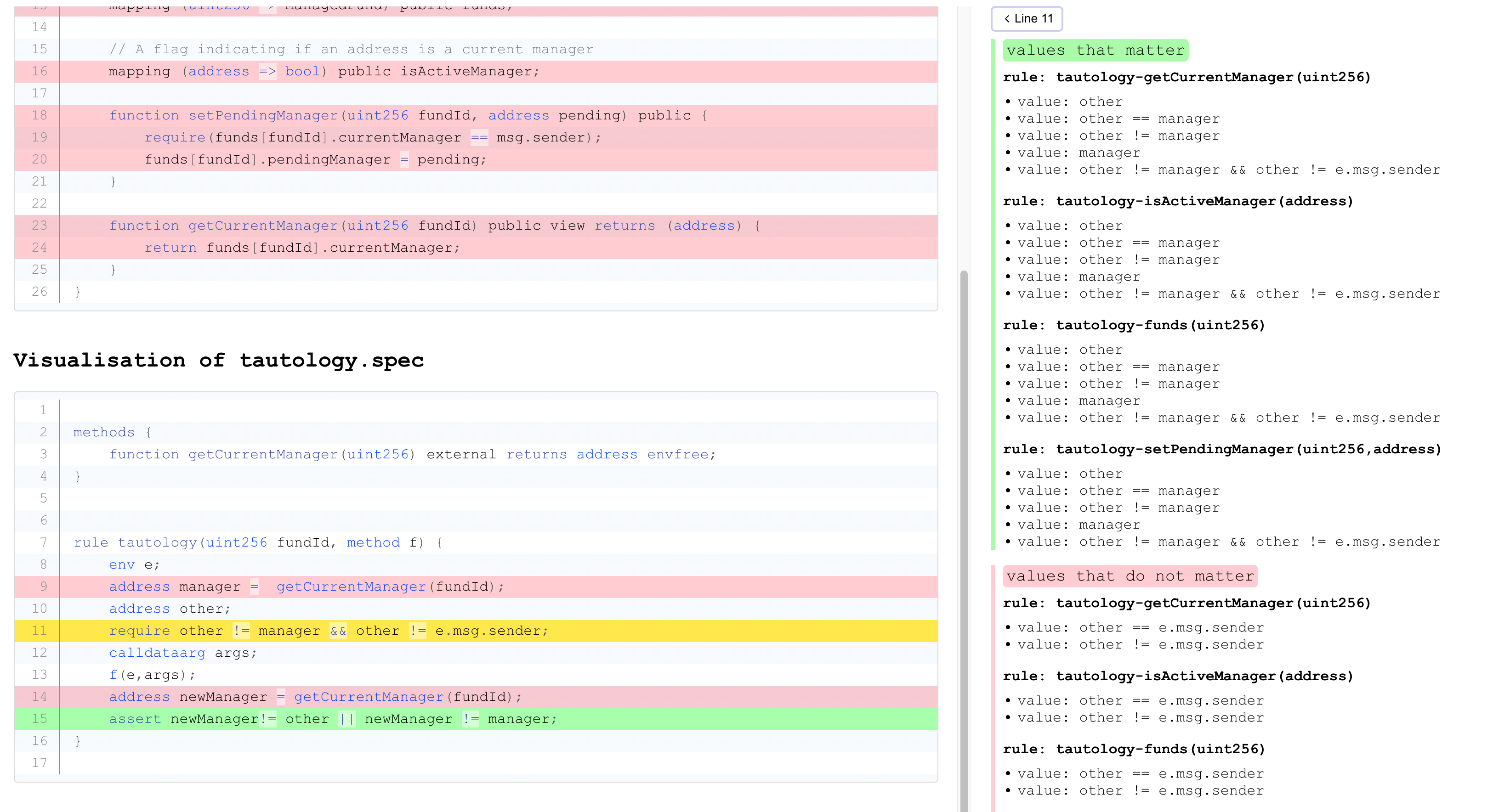

The coverage visualization is shown below. It consists of two panes:

  1. The left pane shows per-line visualization.

  2. The right pane shows detailed info about individual visualized lines.

Example Coverage Info Visualization

In particular, in the left pane, we highlight lines from individual .sol and .spec files. Every line may optionally have a green, yellow, or red background color. No background means we have no information about this line, i.e. it might or might not be needed for the proof. Green, red or yellow background means we have some information about values of commands on the line:

  1. Green means that all of the values on the line are relevant for proving the property.

  2. Red means that none of the values on the line is relevant for proving the property. In particular, you can arbitrary change the values and the property would still hold.

  3. Yellow means that some of the values on the line are relevant and some are not.

Furthermore, if we have multiple rules/invariants or a parametric rule (such as our tautology), we can also have multiple rules/invariants mapping to a single .sol or .spec line. In such a case, a yellow line means that some of the values on the line are relevant for proving some of the rules/methods/invariants and some of the values are not relevant. If you want to generate coverage visualization for a single rule or method, use rule or method.

The right pane provides detailed information about individual values mapped to the lines grouped by the rule/method/invariant name (denoted rule). For instance, in the Tautology example, we can see that the value of the command other != manager on line 11 matters, whereas the value of other != e.msg.sender is irrelevant for the proof. Also, note that the pane shows e.g. both other != manager and other == manager; this is due our internal representation of the input where we encode other != manager as !(other == manager).

Basic vs. advanced mode

The --coverage_info flag takes three possible values: none, basic and advanced:

  1. none means no coverage analysis,

  2. basic means relatively fast but possibly very imprecise analysis (i.e. can claim that some values are not relevant even if they are, and also vice versa),

  3. and advanced means possibly slow but more precise analysis.

Completeness

We perform the coverage analysis on our internal SMT representation of the verification condition, and then map the results of the analysis to the .sol and .spec files. Unfortunately, due to the compilation of the solidity code to EVM bytecode, we cannot maintain a complete mapping between commands from solidity and commands in our SMT representation. Consequently, the visualization on .sol files can be very limited.
